ADVANCED COMPUTER HARDWARE CONFIGURATIONS

1.  PROCESSOR

4th Generation Intel® Core™ i7 Processor
Intel® Core™ i7-4770R Processor (6M Cache, up to 3.90 GHz)
Cache:	6.0 MB
Clock Speed	3.20 GHz
# of Cores/ # of Threads		4 / 8
Max TDP/Power		65
Memory Types		DDR3L-1333/1600
Graphics : Intel® Iris™ Pro graphics 5200

2.cabinet

HAF X

Cooler Master introduced the HAF (High Air Flow) series PC cases in 2008. The key feature of these cabinets, as the name suggests, was the provision of multiple large fans for excellent airflow. So, no matter how hot the hardware inside the box runs, an HAF series case should keep everything cool.
 The hexagonal design goes well with the honeycomb mesh on the front bezel and the top panel. The I/O panel right at the top is a cut-down version of the one found on the HAF X, sans Firewire and eSATA ports. Here, you pair each USB 2.0 and USB 3.0 ports on either side of the headphone and mic jacks.
  the 3.5-inch bays are hot-swappable making it very convenient to add or remove hard drives without having to open the case. This comes in very handy in the case of a RAID 1 setup, or simply if you want to use internal 2.5-inch and 3.5-inch hard drives temporarily (for data transfer or backup). Right at the bottom is a large grille through which you can see the red 200 mm LED fan. To remove the 5.25-inch bay covers, you have to pull out the front bezel by unfastening the plastic pegs around the sides that hold it in place. If you closely observe the area behind the fan grille and the mesh, you’ll find Cooler Master has added thin foam filters to prevent dust from getting sucked inside
This PC case is priced at Rs. 10,900

3.Motherboard

Mini-ITX MI980

Mini-ITX MI980 is equipped with 2 standard- or low-voltage DDR3 SO-DIMM sockets supporting up to 16 GB system memory. Video connections include DVI-I, DVI-D, LVDS/eDP, and DisplayPort. To accommodate expansion cards, MI980 comes with 1 PCI Express x16 and 2 Mini PCI Express x1 slots. Measuring 170 x 170 mm, board also includes 6x USB 2.0, 4x USB 3.0, 6x COM, 4x SATA III, and 2x SATA II with Intel-based dual Gigabit LAN support.
MI980 FEATURES:


• Onboard Mobile 4th Generation Intel® Core™ i7/i5 processors


• 2x standard voltage or low-voltage DDR3 SO-DIMM, Max. 16GB


• Integrated VGA, supports DVI-I / DVI-D / LVDS or eDP / DisplayPort


• 2x PCI-E Intel® Gigabit Ethernet


• Watchdog timer, Digital I/O, TPM 1.2, iSMART


• 6x USB 2.0, 4x USB 3.0, 6x COM (jumperless selection), 4x SATA III, 2x SATA II


• 1x PCI-E(x16), 2x Mini PCI-E(x1) with one for mSATA

4. keyboard


cellulon magic cube laser keyboard

The Celluon Magic cube Revolutionizes the way that PDAs and Smartphones are used, taking advantage of the unused computing power of such mobile devices, thus improving users ability to work more effectively on the go.

The compact sized VKB harnesses laser and infrared technology to project a full-size QWERTY keyboard onto any flat surface for palmtop computer, PDA or mobile phone.

It is also integrated into mobile phones, with Siemens and Samsung having shown versions of the technology integrated into their phones at recent trade shows.
The Celluon laser keyboard acts exactly like any other "ordinary" keyboard: A direction technology based on an optical recognition mechanism enables the user to tap on the projected key images, while producing real tapping sounds
The Magic Cube is a compact and versatile product; it is a projection keyboard and multi-touch mouse, all in one easy-to-use product. It connects easily to any Bluetooth HID devices, including the latest iPhone, iPad and Android devices. You can also plug-n-play with Windows and Mac OS devices via USB connection.
Compatible OS: iOS 4 and later, Mac OS 10 and later, Android 2.2 and later, Windows XP/Vista/7 and later, and any device with Bluetooth HID support.

5.mouse

LOGITECH MX REVOLUTION MOUSE

 if you can afford the price, this is the best thing your palms would experience. While in truth, most of the functions are for leisure and not necessity, once you get used to them you will never view any other mouse with the same lens you used to view them in.
Beautiful design; solid battery life; incredibly comfortable and smooth; free scroll is the iPod for scrolling.

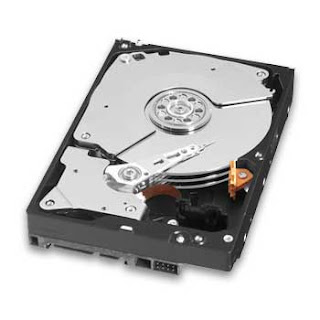

6.hard disk

Seagate Barracuda XT ST32000641AS

Western Digital WD1002FAEX Caviar Black 1 TB SATA III 7200 RPM 64 MB Cache Internal Desktop 3.5" Hard Drive


7.RAM

Corsair 8GB DDR3 RAM (CMZ8GX3M1A1600C10)

8GB Kit (1 x 8GB) DDR3 1600/PC3 12800 DIMM Memory Module 240-pin Configuration 9-9-9-24 Latency 1 x 8 GB DRAM Structure

8.graphics card

6U CompactPCI 4th Generation Intel® Core™ i3/i5/i7 Processor Blade with ECC support

Supports 4th Generation Intel® Core™ i3/i5/i7 processors and Intel® QM87 PCH with embedded graphic (up to 3 independent displays)
Optimized single-slot SBC with 2.5" SATA-III HDD/CFast socket/ on-board flash (optional)
Optimized single-slot SBC with 2.5" SATA-III HDD/CFast socket/ on-board flash (optional)
TPM
Two SATA ports, 1x USB 3.0, four USB 2.0 ports, two DVI ports, two RS-232 ports, one PS/2 connector, and PCIe x8 interfaces to the Rear Transition Module (RTM)
Five gigabit Ethernet ports for PICMG 2.16, front and rear connectivity
PICMG 2.16 R1.0, PICMG 2.1 R2.0, PICMG 2.6 R1.0 compliant

9.monitors

Dell UltraSharp U2312HM

The Dell UltraSharp U2312HM comes with IPS (in-plane switching) display panel technology. IPS panels are currently the leaders in flat panel monitors because of their superior color reproduction. Color clarity is vitally important in this world of high-definition viewing. We all want to get the most out of our movies, games and all other visual media, which is why flat panel technology has changed and improved so many times over the last 10 years. IPS panels also provide a wide viewing angle so you still get a perfectly clear picture even if you are not looking at the screen straight on. The Dell UltraSharp U2312HM allows you to see clearly anywhere within a 178 degree angle, both vertically and horizontally.

The other two key features on the Dell UltraSharp U2312HM monitor are the brightness level and contrast ratio. The brightness set to the maximum level puts out an impressive 300 candelas per square meter, which means your colors will be bright and vibrant in high-def. The typical contrast ratio is 1000:1, which is commonly found on most modern computer monitors. With both of these options, you have plenty of room to adjust your screen to your preferred settings.

10. SATA 3.0, Serial ATA III for Disc Readers - Liteon SSD

Enjoy High Definition Blu-ray movies. See the colours as they were meant to be

Blu-ray Disc movies offer unprecedented 1920 x 1080p resolution, which is 6 times the resolution of DVD

compatibility standard from Lite-On to offer the ability to read, write and re-write to any disc format on the market

Use your drive for any purpose with the media you desire (including CD-R, CD±RW, DVD±R, DVD±RW, DVD±R DL, DVD-RAM format discs

Higher transfer rates with SATA connection (compared to PATA)

Future proof; compatibility with the latest motherboards

Better airflow in PC casings due to smaller cable and plug sizes

SATA supports hot swap(must be supported by your motherboard)

 Burn custom labels directly to CDs and DVDs using LightScribe

Flip and burn. Create silkscreen-quality images on CDs or DVDs. After you burn content, just flip the disc, reinsert and burn your label

Make your mark. Be creative. It's your design, your images. With LightScribe, it shows your label!
